Pergola Twin Basic & Pro New

DOUBLE FREE STANDING PERGOLA

Main set includes: horizontal beams, side column structures with a distance of 5 meters, central column structures with a distance of 6 meters, roof part.

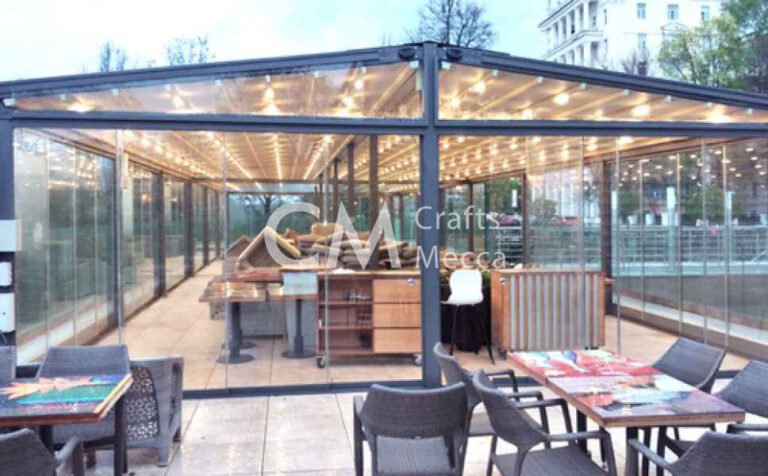

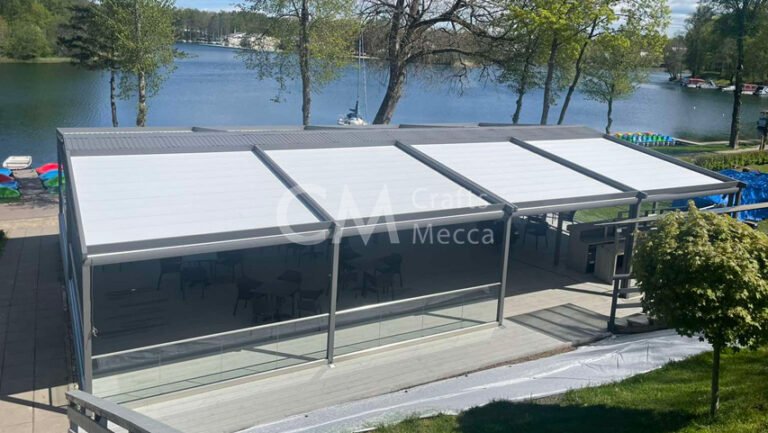

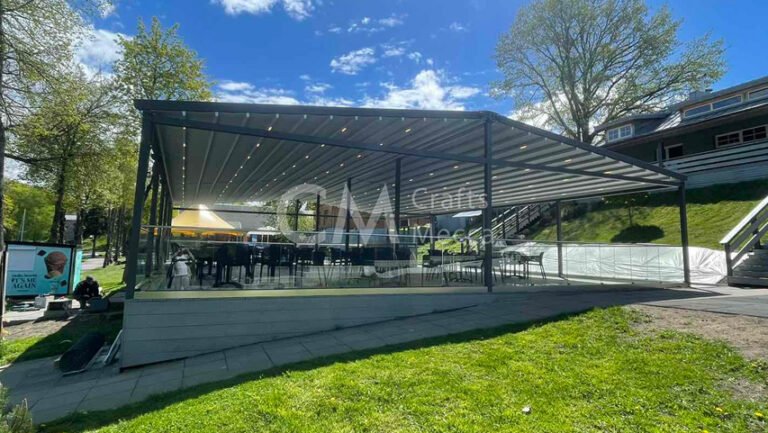

Double pergola is an excellent solution for freestanding areas of outdoor cafes and restaurants. The design creates dense shade reducing the temperature under the canopy to comfortable 24-26 degrees. The sloping plane of the roof reinforces protection against rain, ensuring proper drainage. Convenient form allows you to arrange several entrances under the awning pergola, from different sides. Bright stylish design of the product attracts additional attention and guarantees increased facility attendance.

Price list

			Width (m)
			1 module				2 modules						3 modules					4 modules
			3,0	3,5	4,0	4,5	4,5	5,0	6,0	7,0	8,0	9,0	9,0	10,0	11,0	12,0	13,5	14,0	15,0	16,0
Offset (m)	Light	6,0	8 471	8 982	9 511	10 020	12 090	12 603	13 622	14 642	15 760	16 780	18 832	20 046	21 379	22 009	23 539	26 140	27 628	28 258
		7,0	8 894	9 427	9 983	10 517	12 668	13 202	14 270	15 338	16 515	17 584	19 714	20 994	22 404	23 048	24 651	27 359	28 937	29 581
		8,0	9 489	10 076	10 685	11 273	13 504	14 091	15 265	16 440	17 733	18 908	21 116	22 519	24 064	24 781	26 542	29 387	31 111	31 827

	Basic	9,0	10 412	11 023	11 659	12 266	14 825	15 436	16 660	17 883	19 235	20 458	22 989	24 457	26 081	26 811	28 645	31 843	33 657	34 387
		10,0	10 912	11 548	12 210	12 846	15 614	16 150	17 421	18 692	20 104	21 375	24 017	25 553	27 254	27 998	29 905	33 244	35 148	35 892
		12,0	12 091	12 805	13 549	14 263	17 158	17 872	19 298	20 726	22 315	23 742	26 608	28 334	30 250	31 077	33 221	36 873	39 016	39 846

	Max	14,0	13 560	14 351	15 176	15 967	19 236	20 027	21 608	23 190	24 955	26 536	29 773	31 687	33 817	34 734	37 106	41 216	43 596	44 513
	Max	16,0	14 777	15 645	16 551	17 419	20 936	21 804	23 541	25 277	27 217	28 954	32 435	34 538	36 883	37 884	40 489	44 931	47 550	48 551

	Pro	18,0	16 600	17 430	18 300	19 130	23 544	24 375	26 035	27 695	29 580	31 240	35 615	37 677	40 004	40 860	43 350	48 659	51 284	52 140
	Pro	20,0	17 777	18 667	19 589	20 468	25 202	26 080	27 838	29 594	31 598	33 354	38 046	40 239	42 723	43 606	46 242	52 926	54 732	55 615
All prices are indicated € excluding VAT

Pergola control options

RTS

RTS Altus (^0-50m2) RTS	400
Altus (^50-80m2) RTS	500
TANDEM (^80-150m2)	1200

Remote controls

Situo RTS Pure1k/5k Telis	50/90
RTS Patio1k/4k Telis RTS	80/110
Pure 16k	250

24 V LED LIGHTING

Diode panel

Recommended 1 bulb – 1^m2

Recommended for up to 150^m2 (500W) 600 €
(remote control ordered separately)

Recommended for up to 50^m2 (150W) 400 €
(remote control ordered separately)

Elements

Pergola structure elements:

Drive beam assembly: Light (70 x 150 mm, t:1.9 mm), Basic (70 x 150 mm, t:1.9 mm), Max (90 x 150 mm, t:1.9 mm), Pro (110 x 150 mm, t:2.4 mm).
Supporting front beam with integrated rain duct, the dimensions of one element of which are 167 x 160 mm.
Front column with integrated water collection duct, its section 100 x 130mm t: 2,5 mm. Upper holder and column tray are made of aluminium.
Wall mounting profile, additional roof beam, corner roof part.
Structure for tarpaulin. Larger 57 x 83 mm segments, smaller 57 x 43 mm segments. Installed every 40-50 cm. There are no plastic elements between the holders and the rails.
The roof is made of galvanized steel plate; colour is adjusted based on the colour of the structure coating.
The fabric of the awning is made of composite material Blackout with a density of 760 g/m². Manufacturer: Sattler (Austria).

*The front duct and other aluminium elements are integral with the structure and do not need to be connected additionally

Pergola control:

Automation and remote controls are not included in the price of the gazebo.

Optional:

LED panels with a range of warm or cold light integrated into the edges of the tarpaulin. Price 20 €/unit.
The price of the light dimming device is included when ordering LED lighting (depending on the selected control option).
Horizontal beam (included in the main set of free standing gazebos).
Side column (included in the main set of free standing gazebos).
Pergola painting RAL. Costs an additional 10% of the base price.
Semi-transparent tarpaulin “Soltis Waterprof” (Serge Ferrari) – price 30 €/m²; “Flexlight Lodge” (Stam, Serge Ferrari) – price 10 €/m².
