Zip 100
The vertically moving Zip 100 system is a compact (100 mm) solution used to protect windows, door openings, balconies and loggias from direct sunlight, wind and insects. It works according to the zipper principle. When the curtain is lowered, the zipper locks into the side holders, securing the protective fabric and ensuring that there are no gaps. The system is controlled with electric mechanisms and automation: Somfy, Gaviota.
Standard set includes: automatic control adaptation, mechanism without control, white structure (9016), category II fabric (PVC SOLTIS 96/92 Sunworker, Sunvision, Screen Out).
Optional: electric control mechanism with remote control, automation based on direct sunlight and wind, fabric of another category.
| PVC ventilation fabric | |
Serge Ferrari Soltis 96 Copaco Screen Serge 600 (5%), Serge 1 (1%) | + 0 €m2 + 0 €m2 |
| Moisture and wind resistant PVC fabric | |
Serge Ferrari Soltis 96W Copaco Screen Solar (3%), Lunar Blackout (0%) Serge Ferrari STAM Opaqu Cristal AHILES 0,5mm | +20 €m2 +20 €m2 +0 €m2 +0 €m2 |
| +VAT | |
All components are made of powder-coated aluminium.
The Zip technology is made according to modern European standards.
Price list
The price includes: measurement, glass selection, and installation.
| Aukštis, m | |||||
| 1,5 | 2,5 | 3,0 | 3,5 | ||
Plotis, m | 1,00 | 449 | 576 | 636 | 814 |
| 1,25 | 493 | 631 | 695 | 883 | |
| 1,50 | 534 | 684 | 756 | 952 | |
| 1,75 | 578 | 738 | 816 | 1 022 | |
| 2,00 | 619 | 793 | 875 | 1 091 | |
| 2,25 | 661 | 846 | 934 | 1 159 | |
| 2,50 | 704 | 901 | 995 | 1 229 | |
| 2,75 | 746 | 952 | 1 054 | 1 296 | |
| 3,00 | 787 | 1 009 | 1 114 | 1 366 | |
| 3,25 | 829 | 1 063 | 1 174 | 1 435 | |
| 3,50 | 871 | 1 117 | 1 233 | 1 504 | |
| 3,75 | 914 | 1 171 | 1 293 | 1 574 | |
| 4,00 | 956 | 1 225 | 1 354 | 1 642 | |
*The table shows the prices of the white (RAL: 9016) structure.
+ VAT *

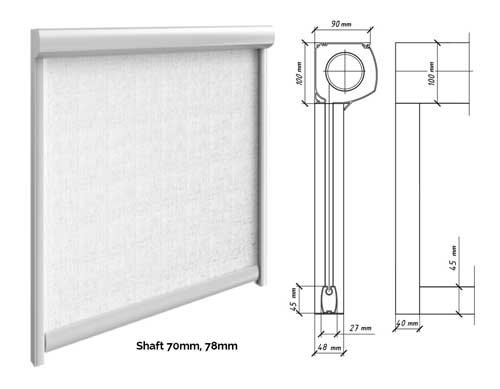

Default model has 70 shafts
Used with 78 shafts
Recommended automation set "gaviota"® (spain)
