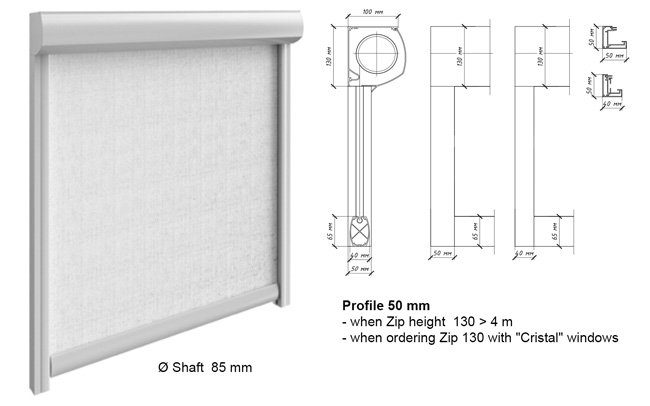

Zip 130

The vertically moving Zip 130 system is used for protecting large, open spaces such as terraces, porches and gazebos against direct sunlight, wind and insects. Due to relatively small cassette size, the closed off area can reach up to 25 m2. The system is controlled with electric mechanisms and automation: Somfy, Gaviota.

Standard set includes: automatic control adaptation, mechanism without control, white structure (9016), category II fabric (PVC SOLTIS 96/92 Sunworker, Sunvision, Screen Out).

Optional: electric control mechanism with remote control, automation based on direct sunlight and wind, fabric of another category.

PVC ventilation fabric
Serge Ferrari Soltis 96 Copaco Screen Serge 600 (5%), Serge 1 (1%)	+ 0 €^m2 + 0 €^m2

Moisture and wind resistant PVC fabric
Serge Ferrari Soltis 96W Copaco Screen Solar (3%), Lunar Blackout (0%) Serge Ferrari STAM Opaque Cristal AHILES 0,5mm	+20 € m² +20 €^m2 +0 €^m2 +0 €^m2
+VAT

All components are made of powder-coated aluminium.

The Zip technology is made according to modern European standards.

Transparent PVC inserts “Cristal” of recommended size

Optional: the insert can be made of transparent PVC “Cristal”

Transparent PVC insert “Cristal”

Height P ↑ up to 1,4 m

Height P ↑ up to 2.8 m

+ 0 %

+ 10 %

Price list

		Height, m
		1,5	2,5	3,0	4,0	5,0
Width, m	1,00	474	593	650	822	886
	1,25	520	650	713	893	970
	1,50	567	706	774	966	1 056
	1,75	613	763	837	1 037	1 142
	2,00	657	823	900	1 108	1 227
	2,25	704	880	963	1 180	1 315
	2,50	750	936	1 025	1 250	1 400
	2,75	798	995	1 089	1 322	1 485
	3,00	843	1 053	1 152	1 394	1 570
	3,25	890	1 110	1 213	1 465	1 656
	3,50	935	1 180	1 277	1 538	1 740
	3,75	980	1 224	1 340	1 608	1 826
	4,00	1 027	1 283	1 400	1 680	1 912
	4,25	1 075	1 340	1 464	1 752	1 997
	4,50	1 120	1 398	1 528	1 824	2 083
	4,75	1 166	1 454	1 592	1 894	2 168
	5,00	1 212	1 514	1 653	1 968	2 253
