Pergola Wall Basic & Pro New
WALL MOUNTED PERGOLA
Main set includes: mounting profile, roof part
Unique sun shading pergola with automatic sliding roof. The perfect solution for the decoration of country patios, pool pavilions and restaurant-type summer areas. It combines refinement of forms, technological effectiveness and high quality. The roof is made of quality PVC fabric, which provides thick shade, blocks the penetration of UV light and protects from rain. The design is mobile and easy to install on any type of facade. Bearing elements are made of aluminum and painted in different colors. This helps to organically fit the pergola in different architectural styles.
Price list
| Plotis (m) | ||||||||||||||||||||
| 1 modulis | 2 moduliai | 3 moduliai | 4 moduliai | |||||||||||||||||
| 3,0 | 3,5 | 4,0 | 4,5 | 4,5 | 5,0 | 6,0 | 7,0 | 8,0 | 9,0 | 9,0 | 10,0 | 11,0 | 12,0 | 13,5 | 14,0 | 15,0 | 16,0 | |||
Išnešimas(m) | Light | 3,0 | 3 221 | 3 493 | 3 775 | 4 048 | 4 840 | 5 112 | 5 656 | 6 202 | 6 795 | 7 340 | 8 122 | 8 765 | 9 464 | 9 815 | 10 633 | 11 706 | 12 485 | 12 835 |
| 3,5 | 3 368 | 3 652 | 3 948 | 4 232 | 5 060 | 5 345 | 5 914 | 6 483 | 7 106 | 7 675 | 8 493 | 9 169 | 9 908 | 10 265 | 11 119 | 12 243 | 13 066 | 13 423 | ||
| 4,0 | 3 601 | 3 693 | 4 235 | 4 546 | 5 412 | 5 722 | 6 345 | 6 966 | 7 648 | 8 271 | 9 123 | 9 860 | 10 668 | 11 062 | 11 994 | 13 184 | 14 081 | 14 474 | ||
Basic | 4,5 | 4 000 | 4 323 | 4 659 | 4 982 | 6 006 | 6 328 | 6 975 | 7 622 | 8 333 | 8 978 | 9 990 | 10 760 | 11 606 | 12 007 | 12 976 | 14 339 | 15 281 | 15 681 | |
| 5,0 | 4 187 | 4 522 | 4 871 | 5 205 | 6 283 | 6 619 | 7 289 | 7 960 | 8 700 | 9 371 | 10 436 | 11 238 | 12 123 | 12 530 | 13 536 | 14 967 | 15 953 | 16 360 | ||
| 6,0 | 4 649 | 5 024 | 5 412 | 5 787 | 6 972 | 7 346 | 8 095 | 8 843 | 9 672 | 10 420 | 11 591 | 12 488 | 13 482 | 13 932 | 15 055 | 16 634 | 17 741 | 18 191 | ||
Max | 7,0 | 5 222 | 5 629 | 6 052 | 6 459 | 7 824 | 8 231 | 9 046 | 9 860 | 10 766 | 11 580 | 12 929 | 13 910 | 14 999 | 15 479 | 16 701 | 18 499 | 19 712 | 20 194 | |
| 8,0 | 5 738 | 6 189 | 6 658 | 7 110 | 8 593 | 9 045 | 9 948 | 10 852 | 11 856 | 12 759 | 14 224 | 15 311 | 16 518 | 17 053 | 18 409 | 20 372 | 21 716 | 22 251 | ||
Pro | 9,0 | 6 867 | 7 358 | 7 868 | 8 359 | 10 284 | 10 775 | 11 755 | 12 735 | 13 828 | 14 808 | 16 713 | 17 896 | 19 208 | 19 788 | 21 259 | 23 706 | 25 169 | 25748 | |
| 10,0 | 7 335 | 7 849 | 8 385 | 8 900 | 10 979 | 11 494 | 12 522 | 13 551 | 14 704 | 15 732 | 17 789 | 19 037 | 20 429 | 21 021 | 22 564 | 25 193 | 26 747 | 27 339 | ||
| Visos kainos nurodytos Eur be PVM | ||||||||||||||||||||
Pergola control options
RTS
| RTS Altus (0-50m2) RTS | 400 |
| Altus (50-80m2) RTS | 500 |
| TANDEM (80-150m2) | 1200 |
Remote controls
| Situo RTS Pure1k/5k Telis | 50/90 |
| RTS Patio1k/4k Telis RTS | 80/110 |
| Pure 16k | 250 |
24 V LED LIGHTING
Diode panel
Recommended 1 bulb – 1m2
Warm light
2700-3000K, 3,5 W, 24V
20 € pcs (m2)
Cold light
4000-5000K, 3,5 W, 24V
20 € pcs (m2)
Recommended for up to 150m2 (500W) 600 €
(remote control ordered separately)
Recommended for up to 50m2 (150W) 400 €
(remote control ordered separately)
Elements

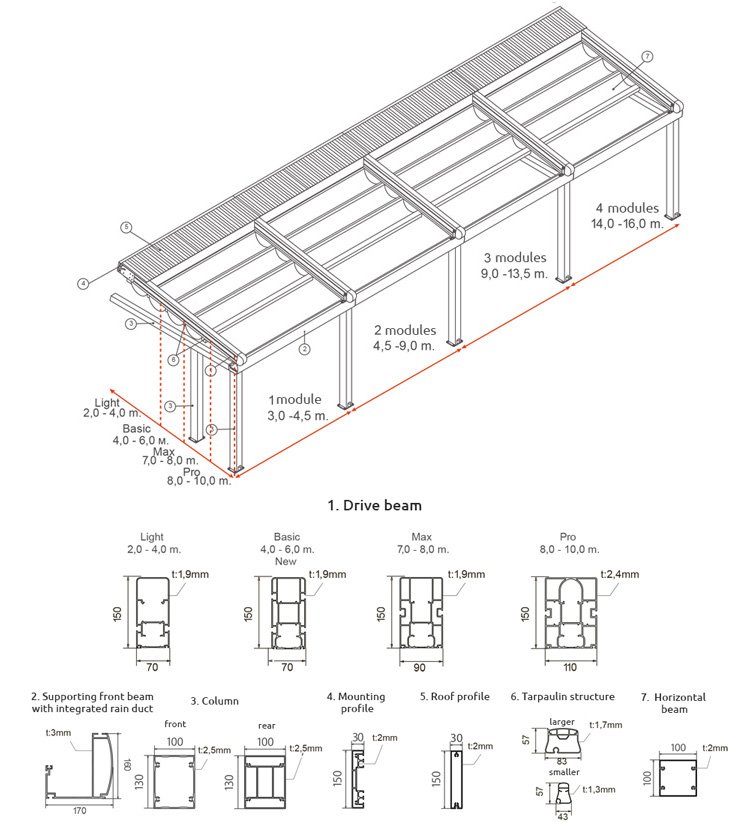

Pergola structure elements:
- Drive beam assembly: Light (70 x 150 mm, t:1.9 mm), Basic (70 x 150 mm, t:1.9 mm), Max (90 x 150 mm, t:1.9 mm), Pro (110 x 150 mm, t:2.4 mm).
- Supporting front beam with integrated rain duct, the dimensions of one element of which are 167 x 160 mm.
- Front column with integrated water collection duct, its section 100 x 130mm t: 2,5 mm. Upper holder and column tray are made of aluminium.
- Wall mounting profile, additional roof beam, corner roof part.
- Structure for tarpaulin. Larger 57 x 83 mm segments, smaller 57 x 43 mm segments. Installed every 40-50 cm. There are no plastic elements between the holders and the rails.
- The roof is made of galvanized steel plate; colour is adjusted based on the colour of the structure coating.
- The fabric of the awning is made of composite material Blackout with a density of 760 g/m2. Manufacturer: Sattler (Austria).
*The front duct and other aluminium elements are integral with the structure and do not need to be connected additionally
Pergola control:
- Automation and remote controls are not included in the price of the gazebo.
Optional:
- LED panels with a range of warm or cold light integrated into the edges of the tarpaulin. Price 20 €/unit.
- The price of the light dimming device is included when ordering LED lighting (depending on the selected control option).
- Horizontal beam (included in the main set of free standing gazebos).
- Side column (included in the main set of free standing gazebos).
- Pergola painting RAL. Costs an additional 10% of the base price.
- Semi-transparent tarpaulin “Soltis Waterprof” (Serge Ferrari) – price 30 €/m2; “Flexlight Lodge” (Stam, Serge Ferrari) – price 10 €/m2.
Tarpaulin fabrics
All prices are in € without VAT
