Pergola Wall Fly

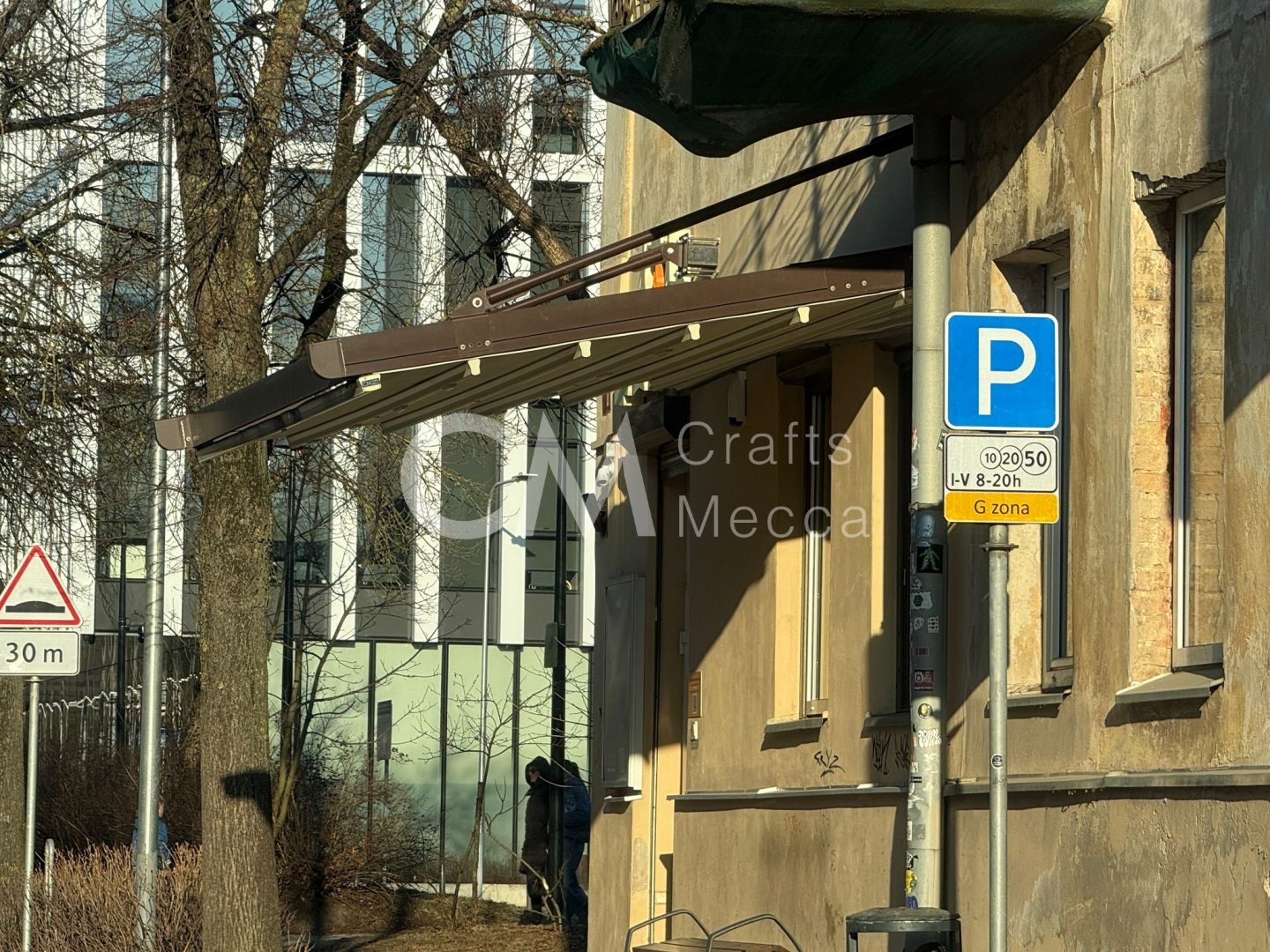

SUSPENDED WALL MOUNTED PERGOLA FLY
Main set includes: mounting profile, roof part.
Unique sun shading pergola with automatic sliding roof. The perfect solution for the decoration of country patios, pool pavilions and restaurant-type summer areas. It combines refinement of forms, technological effectiveness and high quality. The roof is made of quality PVC fabric, which provides thick shade, blocks the penetration of UV light and protects from rain. The design is mobile and easy to install on any type of facade. Bearing elements are made of aluminum and painted in different colors. This helps to organically fit the pergola in different architectural styles.
Price list
| Width (m) | ||||||||||||||||
| 1 module | 2 modules | 3 modules | ||||||||||||||
| 3,0 | 3,5 | 4,0 | 4,5 | 4,5 | 5,0 | 6,0 | 7,0 | 8,0 | 9,0 | 9,0 | 10,0 | 11,0 | 12,0 | 13,5 | ||
|
Offset (m)
|
3,0 | 2 806 | 3 040 | 3 278 | 3 512 | 4 238 | 4 473 | 4 940 | 5 409 | 5 915 | 6 382 | 7 105 | 7 615 | 8 169 | 8 550 | 9 252 |
| 3,5 | 2 980 | 3 225 | 3 477 | 3 722 | 4 499 | 4 745 | 5 237 | 5 730 | 6 265 | 6 757 | 7 528 | 8 072 | 8 628 | 9 034 | 6 491 | |
| 4,0 | 3 240 | 3 512 | 3 792 | 4 063 | 4 890 | 5 162 | 5 708 | 6 252 | 6 846 | 7 392 | 8 212 | 8 818 | 9 478 | 9 902 | 10 720 | |
| Additional hangers | ||||||||||||||||
| 4,5 | 3 823 | 4 107 | 4 399 | 4 684 | 5 764 | 6 049 | 6 619 | 7 187 | 7 811 | 8 380 | 9 453 | 10 093 | 10 792 | 11 222 | 12 077 | |
| 5,0 | 3 996 | 4 293 | 4 598 | 4 895 | 6 025 | 6 322 | 6 915 | 7 509 | 8 162 | 8 755 | 9 877 | 10 549 | 11 287 | 11 725 | 12 616 | |
| 6,0 | 4 433 | 4 769 | 5 114 | 5 450 | 6 679 | 7 015 | 7 686 | 8 358 | 9 099 | 9 770 | 10 990 | 11 757 | 12 603 | 13 085 | 14 092 | |
| All prices are in EUR excluding VAT | ||||||||||||||||
Pergola control options
RTS
| RTS Altus (0-50m2) RTS | 400 |
| Altus (50-80m2) RTS | 500 |
| TANDEM (80-150m2) | 1200 |
Remote controls
| Situo RTS Pure1k/5k Telis | 50/90 |
| RTS Patio1k/4k Telis RTS | 80/110 |
| Pure 16k | 250 |
24 V LED LIGHTING
Diode panel
Recommended 1 bulb – 1m2
Warm light
2700-3000K, 3,5 W, 24V
20 € pcs (m2)
Cold light
4000-5000K, 3,5 W, 24V
20 € pcs (m2)
Recommended for up to 150m2 (500W) 600 €
(remote control ordered separately)
Recommended for up to 50m2 (150W) 400 €
(remote control ordered separately)
Elements
- Moving beam component. Base (71x150mm, t:1.9mm), reaches up to 6 m.
- Wall mounting profile, fastening of the moving beam with rigid hangers, additional beam for the fabric.
- The roof is made of galvanized steel plate with a polymer coating whose colour matches that of the structure.
- Tarpaulin frame. Larger with a cross section of 57×83 mm, smaller with 57×43 mm. Mounted at 40-50 cm intervals, connected wall aluminium connectors. There are no plastic elements in the holder and rails.
- The fabric of the awning is made of composite material Blackout with a density of 760 g/m2. Manufacturer: Sattler (Austria).
Pergola control:
- Automation and remote controls are not included in the price of the pergola and are calculated separately.
Optional:
- LED panels with a range of warm or cold light integrated into the edges of the tarpaulin. Price 20 €/unit
- The light adjustment device is included in the price when ordering LED lighting (depending on the selected control option).
- Side column (included in the main set of free standing gazebos).
- Pergola painting. Additional 10% are paid from the base price.
- Semi-transparent fabric Soltis Waterprof (Serge Ferrari) – priece 30 €/m2; Flexlight Lodge (Stam, Serge Ferrari) -price 10 €/m2.
Pergola Fly structure
The dimensions of the pergola elements are 2500 mm and 3500 mm high, with a projection tilt angle of 7°.
Tarpaulin fabrics
All prices are in € without VAT
