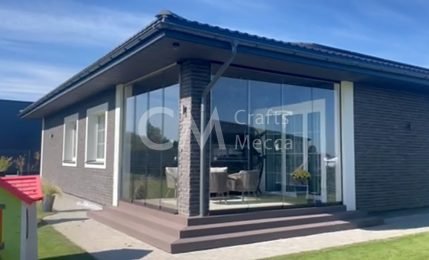

Sliding panoramic frameless glass system "S100"

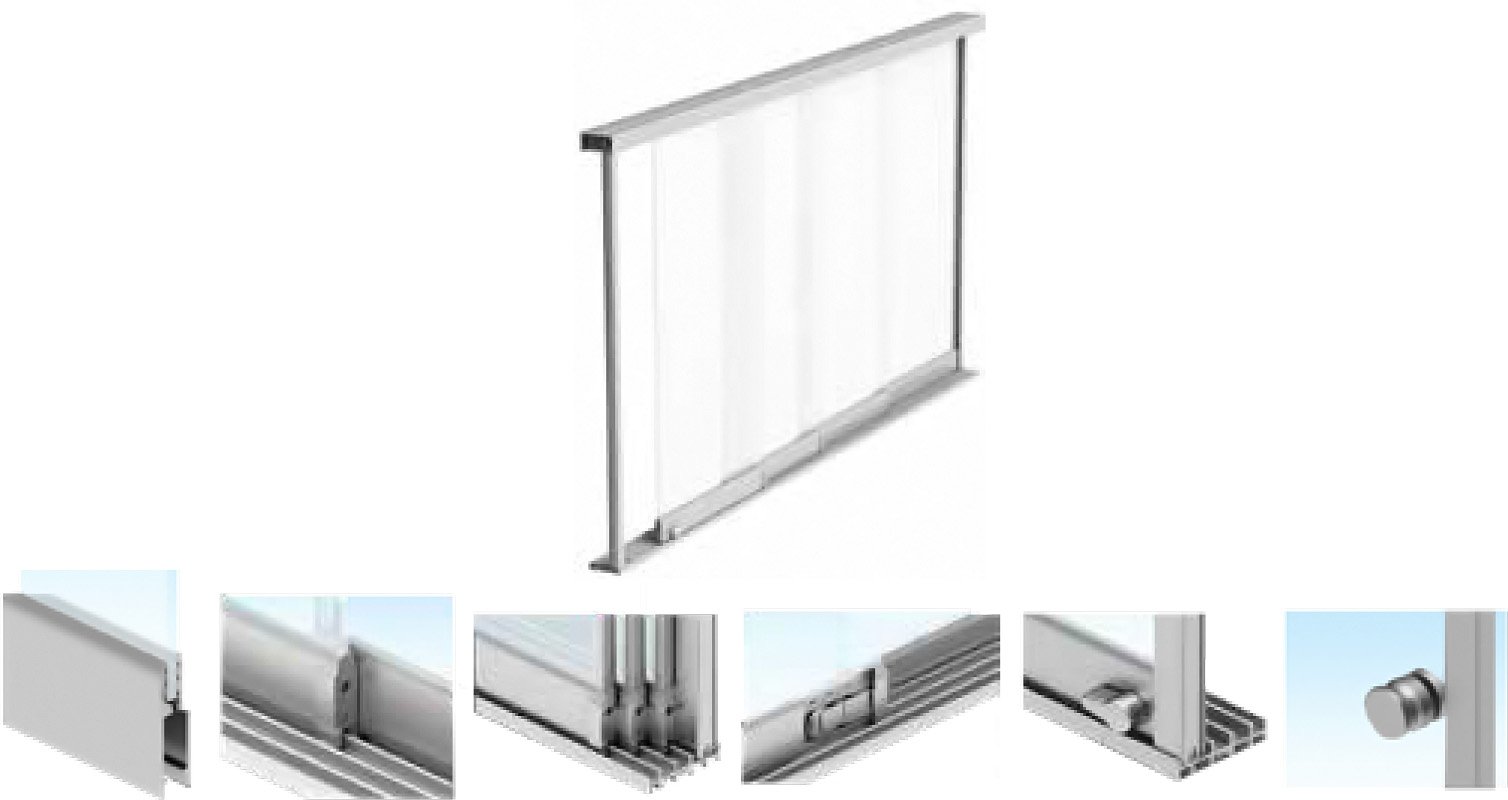

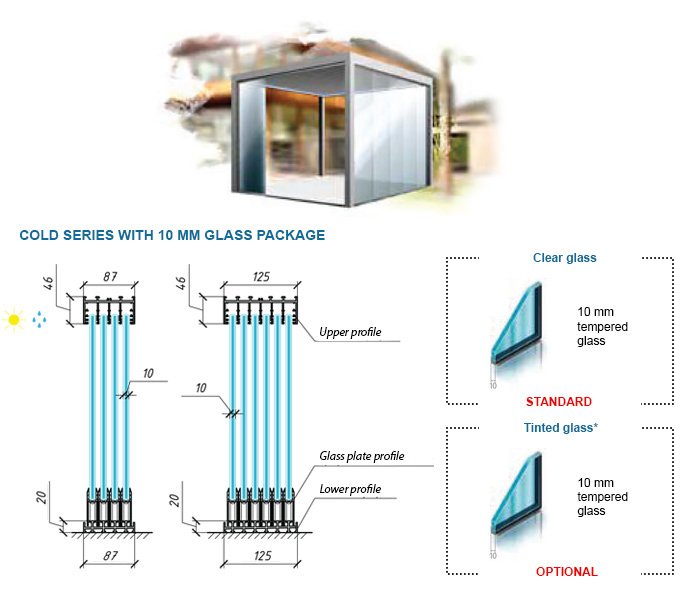

Gaviota® Spanish sliding frameless glazing is available with 10 mm thick frameless tempered glass. It gives the elements maximum strength and wind resistance. The recommended glass height is 3 metres and the maximum number of glass panels is 12. The tracks are supported by a special aluminium profile on the bottom bearing rail and move smoothly on rolling rollers. Special brushes made of PVC and polyester ensure the tightness of the structure and wind resistance. The arrangement, number, width and sliding direction of the glass panels can be chosen individually according to the customer’s requirements. The easy installation and dismantling of the structure ensures its mobility.

Price list of products with 10 mm tempered glass

4 modules

		Width, m
		2	2,5	3	3,5	4
Height, m	1,5	1 055	1 157	1 259	1 361	1 462
	2	1 156	1 254	1 373	1 489	1 608
	2,5	1 214	1 350	1 485	1 619	1 755
	3	1 294	1 446	1 598	1 749	1 901
	3,5	x	x	x	x	2 051
		Price, €. All prices are without VAT.

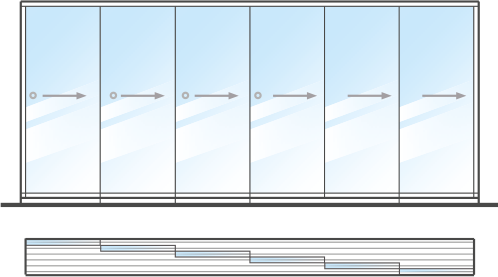

6 modules

		Width, m
		2	4	4,5	5	6
Height, m	1,5	1 702	1 820	1 938	2 056	2 292
	2	1 839	1 973	2 107	2 243	2 511
	2,5	1 975	2 127	2 279	2 430	2 731
	3	2 113	2 281	2 448	2 616	2 951
	3,5	x	x	x	x	3 171
		Price, €. All prices are without VAT.

8 modules

		Width, m
		4	5	6	7	8
Height, m	1,5	2 056	2 270	2 484	2 732	2 946
	2	2 216	2 462	2 710	2 992	3 239
	2,5	2 374	2 654	2 934	3 250	3 529
	3	2 533	2 847	3 160	3 507	3 821
		Price, €. All prices are without VAT.

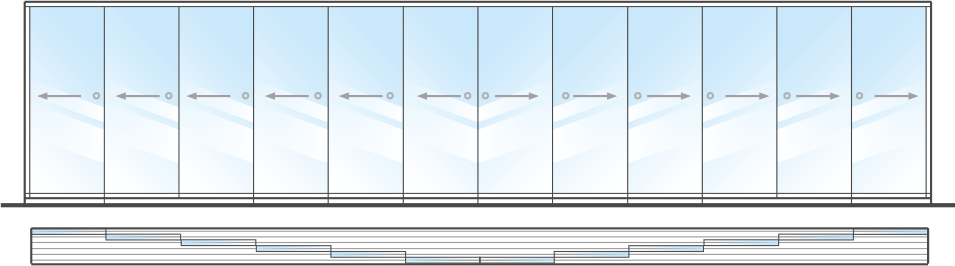

12 modules

		Width, m
		7	8	9	10	12
Height, m	1,5	3 359	3 595	3 830	4 066	4 538
	2	3 632	3 900	4 170	4 439	4 977
	2,5	3 905	4 207	4 510	4 811	5 416
	3	4 179	4 513	4 848	5 184	5 856
		Price, €. All prices are without VAT.
