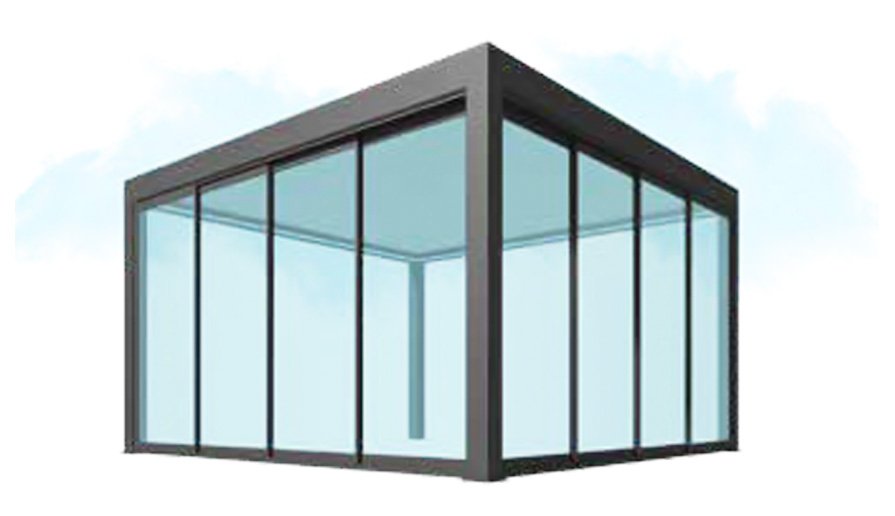

Sliding panoramic glass system "S500"

WARM SERIES

with a glass package

This sliding glass system combines exceptional appearance with incredible practicality. It features reliable noise and heat insulation, as well as a high light transmission design. The system is made of high-quality aluminium and tempered glass, available in thicknesses of 8, 10, and 12 mm. It is a vandal proof and low-maintenance system, with a wide range of applications, from small balconies to panoramic restaurants. Additionally, the price of the frameless sliding glass system is accessible to the widest range of users.

PARAMETERS

S500 WITH A GLASS PACKAGE

Series	Warm Series
Application	Suitable for verandas, terraces, cafes, restaurants, gazebos and show windows
Materials	Extruded aluminium Stainless steel Tempered glass
Glass package	20 mm glass package with tempered glass
Benefits	The glass panels are designed to move independently in different directions, and each panel can be locked and used to pull the others in the closing direction. When the end point is reached, the panel you pulled out will close smoothly. The system can also be fully opened or opened in segments to provide maximum flexibility.

DESCRIPTION

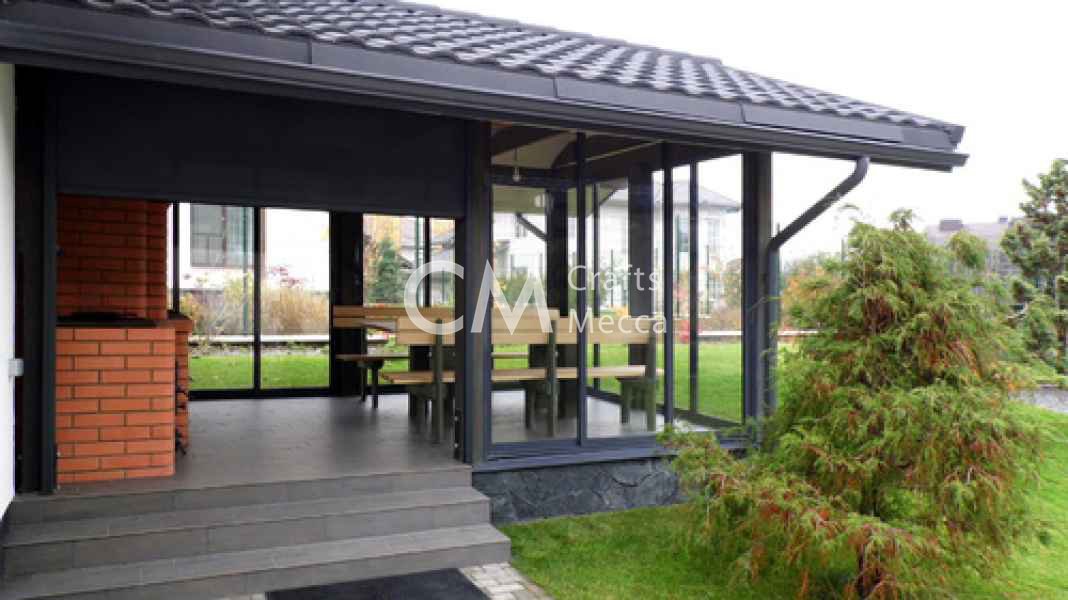

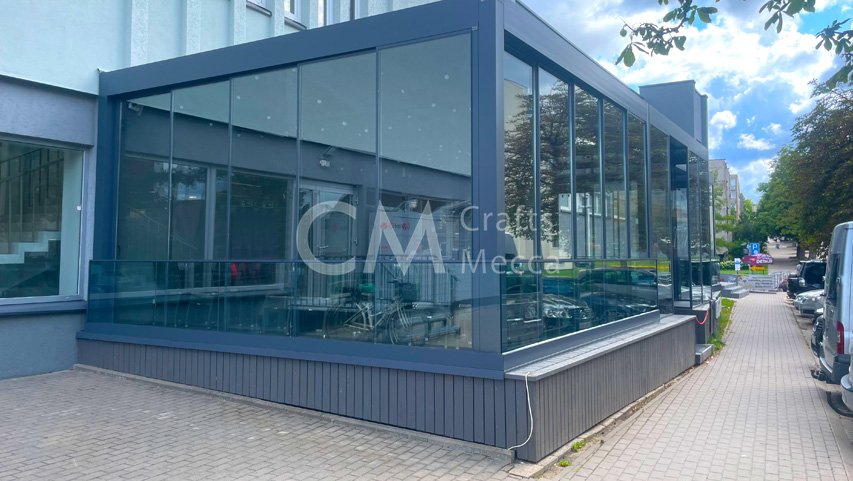

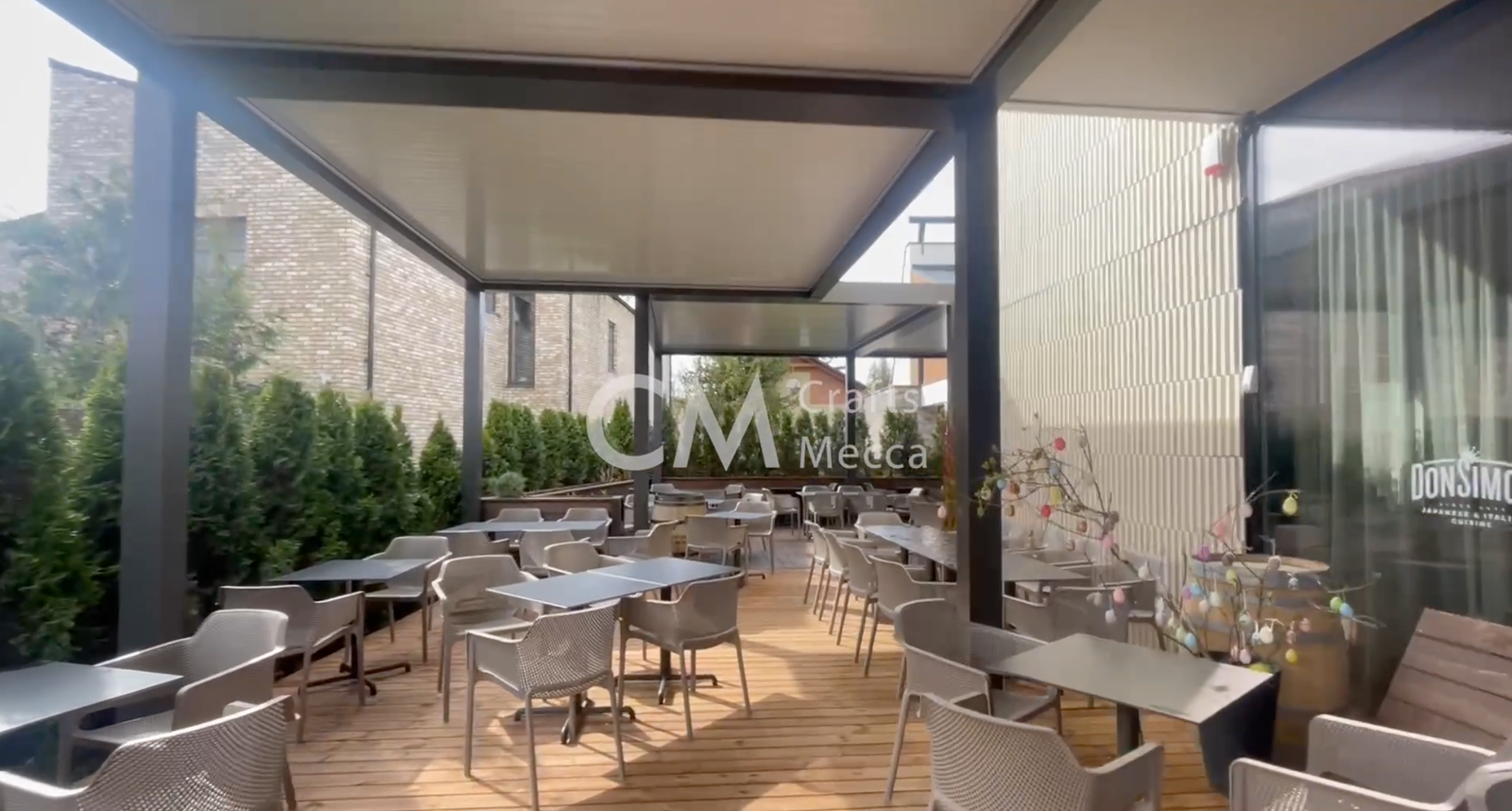

The S500 sliding panoramic glass system is a versatile option suitable for a wide range of spaces, including verandas, terraces, cafes, restaurants, gazebos, and show windows.

It is a unique frameless sliding glass system that is both lightweight and easy to use, featuring segments that move smoothly along rails. Even the larger elements of the glass system move smoothly and quietly. Thanks to its innovative design and the way it opens, the sliding panoramic glass system can open fully without obstructing the area in any way. During the summer season, you can enjoy the fresh air and beautiful scenery, while during the colder months or in bad weather, you can still feel as if you are outside thanks to the sliding panoramic glass.

PRICE LIST

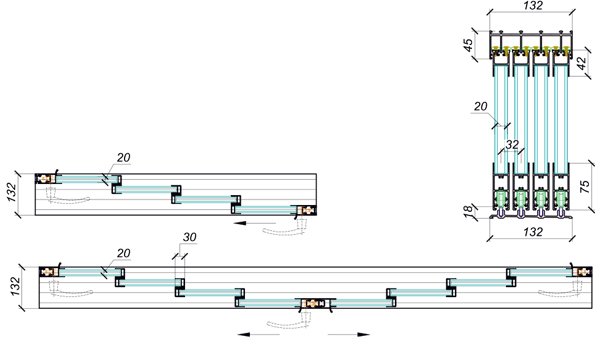

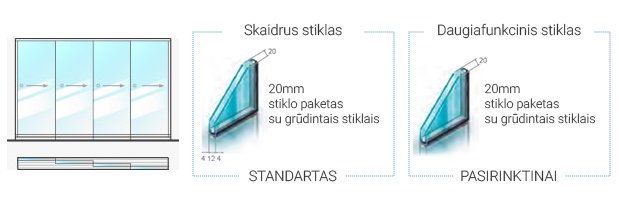

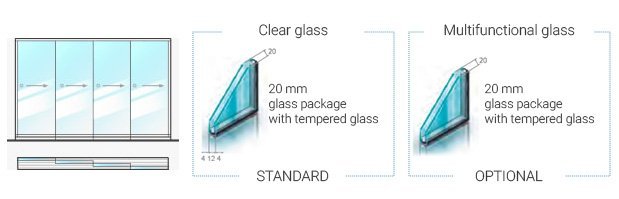

from 2 to 4 modules of 20 mm glass package with tempered glass

		Width, m
		2,5	3	3,5	4	4,5	5
Height, m	1,7	1 387	1 531	1 676	1 822	1 968	2 114
	2	1 500	1 658	1 814	1 971	2 129	2 285
	2,25	1 595	1 762	1 929	2 095	2 262	2 430
	2,5	1 690	1 867	2 043	2 221	2 397	2 573
	2,75	1 786	1 972	2 159	2 344	2 530	2 716
	3	1 881	2 077	2 272	2 469	2 664	2 860
	3,25	1 976	2 183	2 388	2 592	2 798	3 004
		Price €. All prices are exclusive of VAT.

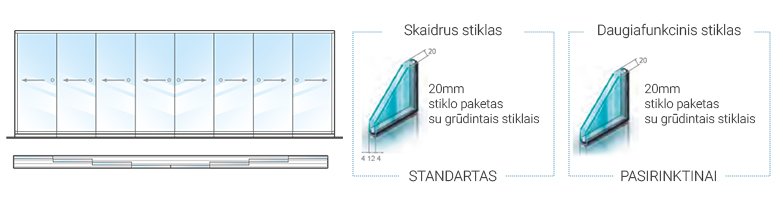

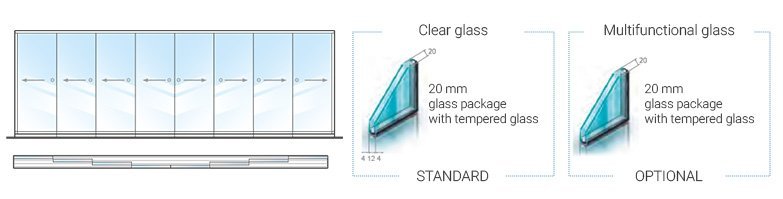

from 4 to 8 modules of 20 mm glass package with tempered glass

		Width, m
		5	6	7	8	9	10
Height, m	1,7	2 746	3 107	3 329	3 620	3 911	4 202
	2	2 971	3 353	3 600	3 913	4 228	4 541
	2,25	3 159	3 561	3 825	4 158	4 492	4 825
	2,5	3 346	3 767	4 051	4 404	4 755	5 108
	2,75	3 532	3 972	4 277	4 648	5 021	5 392
	3	3 720	4 180	4 503	4 894	5 284	5 677
	3,25	3 906	4 386	4 727	5 139	5 549	5 959
		Price, €. All prices are without VAT.

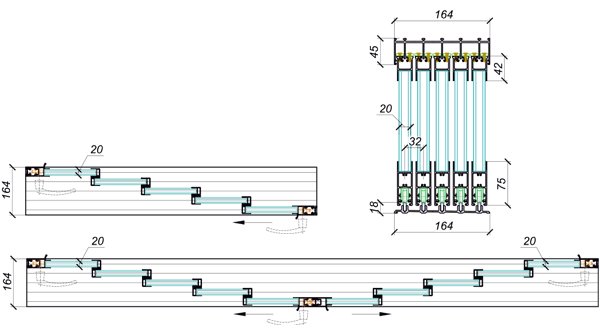

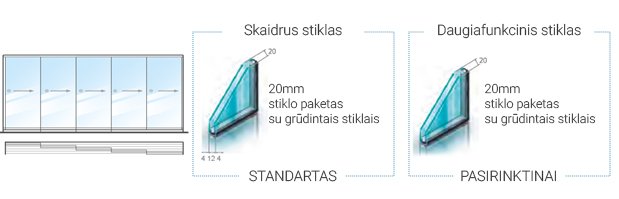

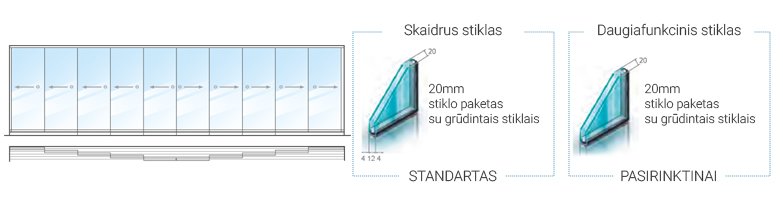

from 2 to 5 modules of 20 mm glass package with tempered glass

		Width, m
		3	3,5	4	4,5	5	6
Height, m	1,7	1 677	1 832	1 986	2 141	2 295	2 604
	2	1 813	1 979	2 145	2 311	2 478	2 808
	2,25	1 926	2 102	2 277	2 452	2 628	2 980
	2,5	2 039	2 224	2 410	2 595	2 780	3 150
	2,75	2 151	2 347	2 541	2 736	2 931	3 321
	3	2 265	2 469	2 673	2 877	3 083	3 492
	3,25	2 377	2 591	2 805	3 020	3 234	3 662
		Price, €. All prices are without VAT.

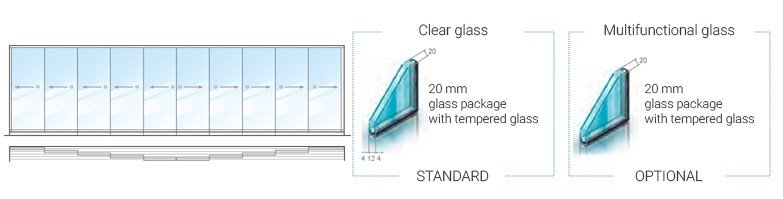

from 5 to 10 modules of 20 mm glass package with tempered glass

		Width, m
		6	7	8	9	10	12
Height, m	1,7	3 333	3 642	3 951	4 260	4 568	5 186
	2	3 599	3 931	4 263	4 595	4 928	5 592
	2,25	3 822	4 172	4 524	4 875	5 227	5 929
	2,5	4 044	4 415	4 786	5 156	5 526	6 268
	2,75	4 266	4 656	5 047	5 439	5 826	6 606
	3	4 489	4 898	5 307	5 718	6 126	6 944
	3,25	4 711	5 140	5 569	5 997	6 426	7 282
		Price, €. All prices are without VAT.
